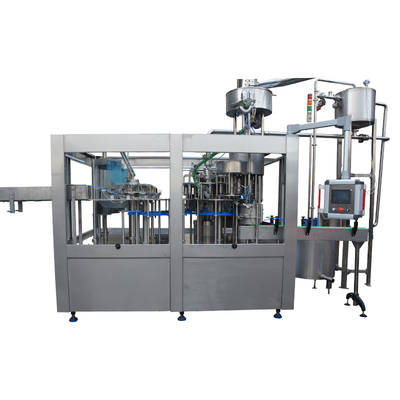

Automatic Bottle Fruit Juice Filling Bottling Machine for Apple / Orange / Mango / Litchi

1.0 Sets
MOQ
$10,000.00(1 - 1 Sets) $9,500.00(2 - 2 Sets) $8,500.00(3 - 4 Sets) $6,500.00(>=5 Sets)
Prijs
Automatic Bottle Fruit Juice Filling Bottling Machine for Apple / Orange / Mango / Litchi
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Filling Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Condition: New
Application: Beverage, Food
Packaging Type: case
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Mechanical
Voltage: 220/380/415/440
Dimension(L*W*H): 2700*1800*1900mm
Weight: 3000 KG
Warranty: 1 Year
Key Selling Points: Energy saving
Machinery Capacity: 4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 1000BPH
Filling Material: Juice
Filling Accuracy: ≥99%
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, Other, PLC, Gear, Bearing, Gearbox, Engine
Product name: Hot Filling Machine
Function: Bottle Washing Filling Capping
filling material: juice
Usage:: Beverage Packaging
Capacity: 1000-30000bph
Control: PLC+ Touch Screen
Advantage: Efficiency
Suitable for: High Viscous Products
Processing Types: Normal Pressure Filling
Feature: Work Efficiently
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Wood case
Supply Ability: 10 Set/Sets per Month
Productomschrijving
Products Description
1) The machine has compact structure, complete control system, easy operation and high degree of automation.
2) The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3) The parts contacting media are made of 304L and have no process blind angles to enable easy cleaning.
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7) The advanced programmed controller (PLC) is adopted to control the machine to run automatically.
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9) Main electric components and pneumatic components are used the world famous brand products.
10) The machine's operation is controlled by an advanced touch-screen that can fulfill human-machine communication.
working process
Product Paramenters
Model:
RCGF14-12-5
RCGF18-18-6
RCGF24-24-8
RCGF32-32-10
RCGF40-40-12
Capacity:500ml(b/h)
4000
8000
10000
13000
16000
Suitable Bottle(mm)
150-340
Suitable Cap (mm)
50-110
Filling Pressure:
Normal pressure
Power (KW)
3.2
5.6
6.3
7.3
9
Dimension (mm)
2400×1670×2350
2865×2170×2350
3700×2570×2350
3800×2950×2400
4500×3400×2400
Weight:(kg)
2500
4000
5000
6000
8000
Details Images

Full Automatic Bottle Unscrambler

It is used for arranging PET bottles and transport by vacuum conveyor. This machine is easy and reliable in running, also it has beautiful appearance. It is easy to connect with various filling machine or filling line.
Also you can choose Semi-automatic type

Air conveyor

Usage: Transporting bottles from blowing machine (bottle umscrambler) to the filling machine

cap elevator

The cap elevator is mainly used for conveying the cap from a low position to a capping machine hopper in a higher position, and is an auxiliary device of the capping machine. The output can be 2,000 per hour to 36,000 per hour, according to customer
requirements. Can be used in a variety of beverage bottle caps (including plastic covers, aluminum covers, metal covers, crown
caps, etc.).

washing head

Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180* along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

filling head

The most advanced technology is employed in the design.The gravity fixed liquid surface filling is used. The filling is fast,the amount of liquid is accurately controlled and the dropping and leakage are avoided.

capping head

The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be amaged,the capping is reliable.
The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles. The bottle-necks are cramped and bottles are suspended during the operation proces. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles.

Air dryer

Adopt high-pressure blower, discharge the air from a small gap, to blow off the water on the bottle body. The gap is laid
incline, which can make the whole body touch the air. It consist of high-pressure blower, blowpipe, frame, control device, surge
tank etc.

Automatic labeling machine

Sleeves made of elastic stretch film can be applied to the slightly rounded area of plastic containers without glue, for they are shrunk with stream or hot air to fit the container shape. Suitable product: plastic containers in beverage, health, cosmetic,daily consumption fields etc. Applying the sleeves made of elastic stretch film to the slightly rounded area of plastic containers
without glue.

Automatic packing machine

Full automatic shrink packaging machine mainly consists of mechanical devices for product conveying, aggregating and aligning,propelling for packaging film, film roll laying, bottle pressing device, heating seal, shrinking by heating, cooling and forming,
pneumatic control system as well as electrical control system. All these are combined to achieve the whole technological processes, from conveying product to feeding material, packaging film, laying film, sealing and cutting, shrinking by heating, and
to cooling and forming
Supporting equipment
water treatment
The water treatment system is pre-treating amd desalting the tap water in the raw water tank in the RO system to get pure water.The pre-treatment device consists of quartz sand filter, active carbon filter, natrium ion exchanger and precision filter onizer and so on. we adopt imported RO membrane of Hydranautics from U.S.A for RO system. The structure of whole line is simple, the operation is convenient, the technical level is high. This system is the most ideal drinkable water production line.

sugar melting tank

The equipment is a simple structure, easy to use, with heating, stirring and cooling devices of sugar melting equipment.

Syrup filter

The filter is mainly used for removing impurities from sugar paddle, and the filtered sugar solution is clear and transparent. It has no odor and odor.

mixing tank

The dispenser can mix syrup, food flavors, food additives and water evenly.

double filter


Ultra high temperature sterilizer

There are two kinds of UHTspecifications: manual and automatic temperature control. This machine is mainly used for sterilization of fresh milk, juice, beverage, wine, soybean milk, traditional Chinese medicine and other fluid materials. If it is matched with high-pressure homogenizer, it can also be used for high viscosity liquid (such as sweet condensed milk), which is an ideal sterilization equipment.

CIP

Company Profile
TECH machinery is a company with 15 years of production experience, is a dynamic and positive team. The company sets development, production, sales, after-sales as one; on the basis of consolidating the original high-quality, absorbing the latest technology in the world, providing a perfect solution for lots of customers. The main production equipment includes: water washing filling capping 3-in-1 machine, Carbonated beverage washing filling capping 3-in-1 machine, hot beverage tea washing filling capping 3-in-1 machine, barrel water filling machine etc. Pre-treatment equipment includes: water treatment equipment, sugar pot, production line necessary set Automatic labeling machine, automatic sticker labeling machine, film packaging machine, packing machine, palletizer, etc.; at the same time, it also provides PET bottle blowing machine, etc. Our customers are from all over the world, the main market: China, Myanmar, Cambodia, Thailand, Tanzania, Bangladesh, Russia and other countries and regions. Many years of sales also received good comments from customers, as well as satisfactory reply.
we have professional processing machine such as CNC, and we have experienced workers.

Sales department and technology department

We can supply professional sales project, and design machines for you.
Touch screen: Mitsubishi /Siemens
PLC: Mitsubishi
Inverter: Mitsubishi
Contactor: Siemens/ Schneider
Product packaging
Shipping
Delivery to Sea port by truck, then ship to customer's factory.
Projects in customer's factory

Project in customer's factory

We supply complete project for customer, from A to Z. Turnkey project.
