Residue-Free Critical/Industrial Cleaning for Tray Plastic Basket Automatic Turnover Box Glass Washing Machine

1.0 Sets
MOQ
Residue-Free Critical/Industrial Cleaning for Tray Plastic Basket Automatic Turnover Box Glass Washing Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Machine Type: HIGH PRESSURE CLEANER
Applicable Industries: Food & Beverage Factory, Farms, Restaurant
Condition: New
Feature: Critical Cleaning / Residue Free
Fuel: Electric
Use: Sterilizing / Disinfecting
Cleaning Process: Hot Water Cleaning
Cleaning Type: HIGH PRESSURE CLEANER
Industry Used: Food Processing
Material: Plastic
Power: 5.5 KW
Dimension(L*W*H): 4000*1540*1680mm
Warranty: 1 Year
Max. Pressure: 10Mpa
Marketing Type: promotion 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pump
Key Selling Points: Energy saving
Weight (KG): 600 kg
Product name: Turnovert basket washing machine
Application: cleaning for turnover basket,pallet and so on
Usage: industrail use
Keywords: Turnovert basket washing machine
Energy source: Electric
Advantage: multifunction and water recycling
Model No: IR-K4000/5000/6000
After-sale service: one year warranty and life long service
Washing type: high pressure water spraying
Showroom Location: Thailand
Basis informatie
Model Number: IR-K4000/5000/6000
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1 set/export wooden case
Supply Ability: 50 Set/Sets per Month Bisctuit Machine
Productomschrijving
Product Information

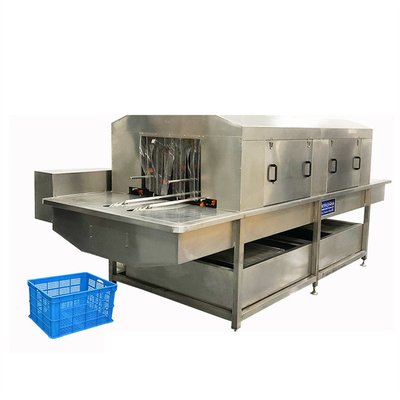

Industrial For Glass Tray Plastic Basket Automatic Turnover Box Washing Machine

Turnover basket machine introduction:

T he pallet washing machine is a cleaning equipment that integrates cleaning, degreasing and

disinfection designed for various types of turnover baskets. The equipment is easy to operate and

has stable performance. The nozzle adopts food-grade high temperature resistant plastic nozzle or

stainless steel nozzle. The cleaning angle is adjustable. Different models are used for up and
down, left and right to avoid dead corners and ensure cleanliness. The cleaning room is equipped
with movable waterproof doors on both sides, and the two ends enter the basket. The mouth is
sealed and waterproof with a soft curtain, which is convenient for cleaning and repairing
equipment at any time. It is an indispensable ideal cleaning equipment for food processing
enterprises.

Turnover basket machine cleaning process:

The basket to be cleaned is transported to the cleaning machine by a stainless steel chain. The
cleaning is divided into three stages: the first stage is hot alkaline water, the second stage is hot
clean water, and the third stage is tap water. In addition to the tap water in the third stage, the
three-stage spray water has an independent circulating filter water tank. The third-stage tap water
is recycled as supplementary water to the second-stage water tank after heating and used, and part
of the sewage is automatically discharged. The second stage water tank is equipped with a steam
heating pipe, the temperature is freely set from normal temperature to 100°C, and the temperature
is automatically constant.
The cleaning design of the whole machine adopts three-stage cleaning with four-sided spraying.
The first stage is alkaline water cleaning, and the water temperature is kept at about 80°C, which
can effectively remove oily impurities. The second stage is cleaned with 80°C water for a second
time to thoroughly clean the turnover basket. The third stage is natural disinfection water, which
sterilizes and disinfects the turnover basket and the turnover box.
The basket washing machine is made of high-quality 304 stainless steel, and the operation mode
adopts the shaft chain operation, which can effectively ensure the smooth operation of the product
and the uniform and thorough cleaning surface. While ensuring that the turnover basket is cleaned,
it can effectively remove the dirt on the surface of the turnover basket, avoiding contact with the
product during use and regenerating bacteria.

Turnover basket machine features:

1. The whole machine is made of SUS304 stainless steel, which meets the national food hygiene
standards.
2. Motor, reducer, five-level speed regulation.
3. The electrical waterproofing is set up to prevent the equipment from being burnt out due to
environmental humidity

4. Electrical appliances are equipped with overload protection and leakage protection to ensure

the personal safety of operators.
5. The conveying part of the machine adopts SUS304 stainless steel mesh belt, the conveying
speed is adjustable from 3-15m/min, the operation is stable, and the service life is long.

Turnover basket machine technical parameter:

Model

Mesh belt width ( mm )

Machine dimension ( mm )

Motor power ( kw )

Water pumpe power ( kw )

Heating power ( kw )

IR-K-4000

800

4000*1540*1680

0.55kw

5.5kw+4kw

24kw

IR-K -5000

5000* 1540* 1680

1.1kw

5.5kw*2/4kw*1

48kw

IR-K -6000

6000*1640*1680

1.1kw

5.5kw*2/4kw*1

48kw

Product Display

CompanyInfo

Henan I-Rarlon Machinery Equipment Co. ,Ltd is a specialized manufactu rer and supplier in produ cing packing machines,food machines,construction machines and others. Our main products include fruit & vegetable and nut processing machines,meat processing machines packing machines, etc. Our R&D team is constantly exploring and innovating, and explore new machines every year by market requirement. Besides, Our well-equipped facilities,complete after-sale service system and excellent quality control system on all stages of production enable us to satisfy customers from different countries . Our machines are exported to Europe, America,Asia and Africa,more than 60 countries. we win good reputation from many clients because of good quality and service,rich exporting experience.

Certifications

Product Packaging

1. Delivery Date

Stock machine will be sent in 24-48 hours.

Regual machine will be sent during 3-10 days accroding to machine type.

2. Packing method

Every machine will be packed in export standard wooden case before delivery.

3. Delivery

We will send machine by air/sea/courier under customer's requirement.

faq

1. Q: How to order and pay for machine?
A: After confirming all details,we make PI,client can pay by TT,Credit Card,Paypal or other method.Or we make assurance order in Alibaba,client pay it on line.

2. When will the machine be sent after client ordering?

A: We will check store list,if there are stock machine,it will be send within one or two days. And the regular delivery date is 4-10days depending on machine model

3. Q: How to ensure the quality of machine?
A: we have QC department,every machine will be debugged and tested before delivery.If client need it, our QC will offer testing video for confirming before delivery.

4. Can you customize machines for me?

Yes,we can customize machine according to client's requirement.


5. Q: How to send machine?

A: Before sending,the machine will be packed in standard export wooden case to make sure it not broken during transportation.

If machine is big and heavy,we advise to send by sea or by air.But if machine is small and not heavy,it is suitable to send by courier.

6. Q: what is your after-sale service?

A: Every machine has one year warranty from receipt of machine and our after-sale service will offer lifetime service.Client can contact us at any time.

7. Q: what is your advantage?

A: 15 years manufacturing experience in machinery industry.

Export in more than 60 countries for 10 years.

QC Ensure every machine quality before delivery.

Professional R&D team to explore new machine every year for market.
