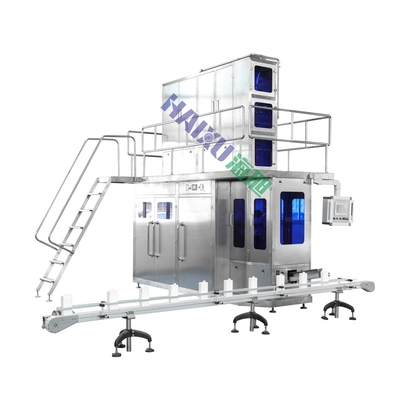

Food Carton Box 120ml-1L Automatic Lemonade Beaten Egg Juice Liquid Aseptic Filling Machine

1 Set
MOQ
$48,000.00(1 - 1 Sets) $45,000.00(2 - 99 Sets) $31,000.00(>=100 Sets)
Prijs
Food Carton Box 120ml-1L Automatic Lemonade Beaten Egg Juice Liquid Aseptic Filling Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Filling Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops, dairy
Showroom Location: None
Condition: New
Application: Food, Beverage, Chemical
Packaging Type: Cartons, Bags, Pouch
Packaging Material: Plastic, Paper
Automatic Grade: Automatic
Driven Type: Pneumatic
Weight: 1300 KG
Warranty: 1 Year
Key Selling Points: Energy saving
Machinery Capacity: 3000-5000 cartons/hour
Filling Material: Milk, Water, Oil, Juice, Powder, Other
Filling Accuracy: 1ml
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Engine
Product name: juice filling machine
Function: weigh form fill seal
Capacity: 120ml-1L
Control: PLC+ Touch Screen
Customized: Accept
Machine material: Stainless Steel SUS 304/316
optional device: capping machine
Speed: 3000-5000 cartons/hour
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Packing detail 1)Dedust & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules into Plywood Cases 6)Mark Shipping Mark In The Cases 7)If any special requirements, we will pack it as reque
Supply Ability: 10 Set/Sets per Quarter
Productomschrijving
Our Workshop
All the pictures are real display.Please be free to contact us, we can show you our factory and machine via live stream
Details Images
Circuit System Control Box
All the components used in this control box are famous brand, such as Yaskawa, SMC, Schneider, Carlo Gavazzi...etc, which ensure the filling machine runs well and has good performance during the production.
Air Filtration Disinfection System
High temperature air heating/filtering system which provides clean air and ozone to the pre-shaping room of aseptic environment.
Hydrogen peroxide & UV Disinfection System
All packing material need to be sterilized through the hydrogen peroxide & UV disinfection system, which ensure the safety of aseptic filling process.
Pre-shaping System
The drinks carton will be pre-shaped in this stage, in which the package material after being sterilized will be performed based on an aseptic environment with filtering air and ozone.
Shaping and Filling System
The package material will be filled with accurate liquid drinks and be formed into aseptic carton(box) , and then transported to the conveyor.
Touch Screen
The 10 inch touch screen (HMI) is connected with PLC system, it’s easy for operation and with high accuracy, it has double and multi-language for customers’ choices.
Specification
Type
HX5000-200/HX5000-250/HX5000-500/HX5000-1000
Capacity
200ml-1000ml
Compressed Air Pressure
>0.6mpa (6Bar)
Packaging Speed
5000 cartons/hour
Power
18KW
Actual Power Consumption
8KW
Power Source
50Hz 380/220V
Size
4200mm x1800mm x4000mm (L x W x H)
Weight
3000KG
Package Form
Brick-shaped carton packages made of papar AL/ PE laminated materials.

Product Features

1. Equipped with both H2O2 & UV sterilizing, comply with firm's safety management requirement.
2. The system will finish all the process automatically: feeding, dosing,filling, sealing, date printing and finish product conveying. It has high accurate weighting and high efficiency without broke.
3. With PLC pneumatic control system and quality touch screen to compose the drive control center which maximize the whole machine's control precision, reliability and intelligent level.
4. Use intelligent tempreture controller to have accurate tempreture, which ensures the artistic and neat seal.
5. the unique mechanical structure can adapt to a variety of packaging materials, which can significantly save the cost of consumables.

Product Application

This aseptic filling machine is used for liquid drinks with UHT processed, including liquid milk, soy milk, fruit juice, yogurt, water, wine and other beverage such as coffee drinks, soft drinks, plant protein drinks, tea drinks...etc. We offer a one year quality warrenty for our packaging machines.
You may need the UHT Sterilizer machine, Straw Sticking machine and Capping machine to complete the beverage packaging production line.
Company Profile
HAIXU Filling is a Chinese manufacturer that specializes in the design, development,manufacturing,sales and assembly of aseptic packing and auxiliary equipment for liquid foods including purified water, juice, milk,baking cream, yogurt, passata, wine, etc.
Our company has strong technical strength and many practical patents, and we always adheres to high quality standard to meet Europe and America standards. Our machines are widely used in food packaging & liquid drinks filling industries.
Packing & Delivery
FAQ
Q：What does your after-sales service?
Manual installation book, video support, online-support and also engineers oversea.

Q: Are you factory or trading company？
We are factory since 2011, loacted in Foshan city of Guangdong province of China which is beside Guangzhou city. We has gathered reaseraching and producing packaging machine for more than 10 years.

Q: How do you ensure the quality of machine before delivery?
Machines are also tested for their performance, speed and productivity in harsh conditions by final quality control team before delivery. Moreover, our component providers run additional test procedures for their products on our machines.

Q:Do you provide customized service?
We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion.

Q: Do you have any installation services?
We will provide the installation instruction and videos to you. Also we will arrange engineers to install it locally if you need. And we will provide pre-sale and after sales service to help and direct you to use the machines well.
